Form the rail elements into beams at least 1 ft 300 mm wide and 3 in 75 mm deep and at least 0 156 in 3 96.

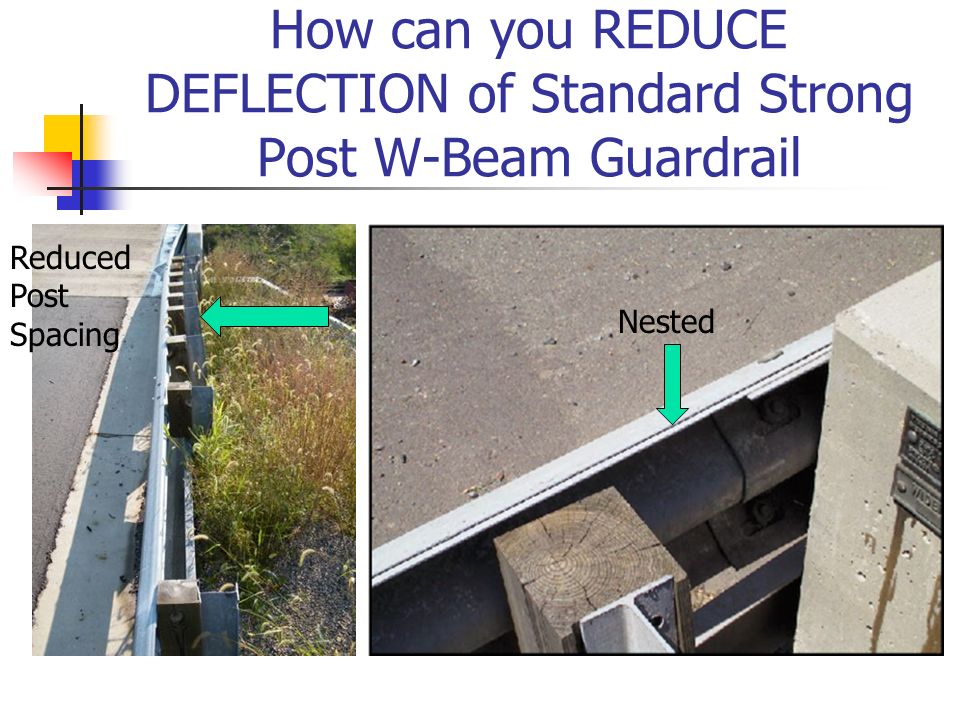

W beam guardrail deflection.
Hot dipped zinc coating or plastic coating.
W beam guardrail comprises a rail element known as w beam.
The system comprises w beam mounted on a post and block configuration with slight variances to meet state specifications.
31 s normal post spacing 31 sc close post spacing 31 scc very close post spacing rigid systems permanent concrete barrier weak post guide rail 2 w 2 wc and 2 wcc should be used if the minimum unobstructed distance behind the rail is.
Manufactured in accordance with state road agency specifications.
Public road guard rail w beam sydney.
For a mash tl3 as nzs3845 2015 compliant w beam system please refer to ezy guard smart.
Aluminum guard rail elements a.
The deflection of the system allows for greater load transfer to adjacent posts thereby sharing the impact load from the vehicle.
If constructing guard rail on curves with a radius of 150 ft 45 m or less curve the rail elements in the shop to the radius on the road side of the rail either concave or convex as required.
We supply two kinds of finishes for w beam guardrail panels.
W beam guardrail provides designers an economical and dependable roadside solution.
Guardrail barriers provide semi rigid protection to shield motorists from hazards located close to the edge of the travelled way.
W beam guardrail is the world s most widely specified safety barrier system offering protection from hazards located adjacent to the travelled way.
Virginia department of transportation guardrail installation training manual grit procedures and practices for the design installation replacement and.
This is the major type of beam barriers for highways safety with symmetrical designs on each side of the beam.
Transition the mgs w beam guardrail down to 2 3 where a curved end treatment is needed.
W beam guardrail has a section or profile of w shape it is also named as two wave beam guardrail.
Ramshield w beam guardrail safety barrier achieves a controlled redirection of errant vehicles by releasing the w beam guardrail from the post at an optimal load to retain rail height limit dynamic deflection and to allow the post to collapse without tripping the vehicle.
Ingal civil products flexbeam guardrail is a semi rigid roadside safety barrier which is deemed to comply with nchrp 350 test level 3.
